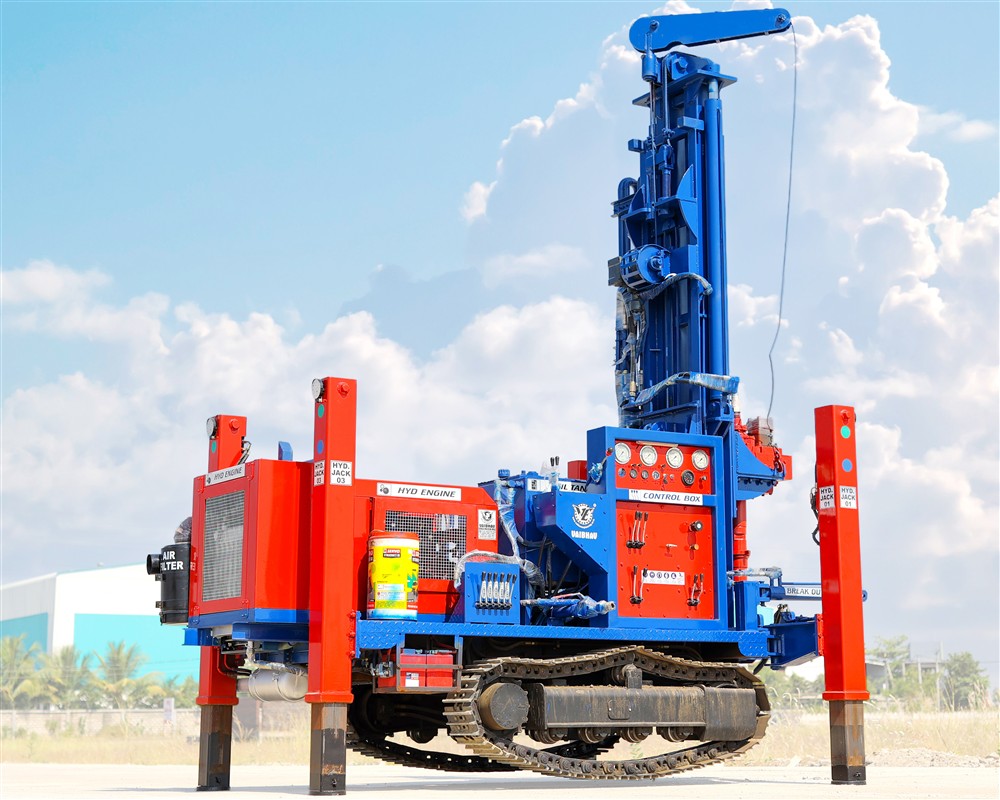

VE C 700 Crawler Drills VE C 700 Crawler Drills, Vaibhav Engineering

Multi Purpose Heavy Duty Drill

Leveling Jack 100mm From Hydraulic Jack Open Type Drilling Tower Length 5000mm

The Vaibhav Crawler Drills are reliable, effective, and versatile drilling rig that offers maximum output for the best return on investment. The compact and lightweight track-mounted frame is ideal for maneuvering over rough terrains and confined areas. It has a versatile feed boom arrangement that allows it to perform drilling in a wide range of angles and orientations.

Get a quote Watch

Hole Diameter	6 to 10 Inches
DTH Drilling Depth	300 Mtr.
Deck Engine	180 HP or Power from Truck Engine
Hyd. System Pressure	Maximum Working Pressure 2900 psi
Work Method	Water well Drilling Rig, DTH Cum Rotary
Drilling Tower	Box Type Structure
	Max Capacity - 16 Ton
	H.S Rod Handling Capacity 10 Ft.
Roatryhead	Rotaryhead Powred by one Orbital Hydraulic motor
Roatryhead	Maximum Speed 0-120 RPM
Drilling Tower Length	50000 mm
Pull Up Force	17000 kgf
Leveling Jack	100mm from Hydraulic jack open type

Key features:

Two to Three man operated high production drill rig
Capable of both DTH
Quick conversion kit for switching between DTH & top hammer drilling
Two independent, air motor powered track assemblies on either side
Reliable self-propulsion
Powerful feed system with strong and heavy feed chain which can exert loads of up to 2200 kgf on either side
Wide coverage of vertical, horizontal and angle drilling positions through boom and guide setup
Centralized control placed on track assembly for quick and easy access
Heavy duty tow hitch for attaching and towing air compressor
Rugged construction and advanced design ensure power and reliability over long term
Low running costs

VE C 700 Crawler Drills

Multi Purpose Heavy Duty Drill

Key features:
