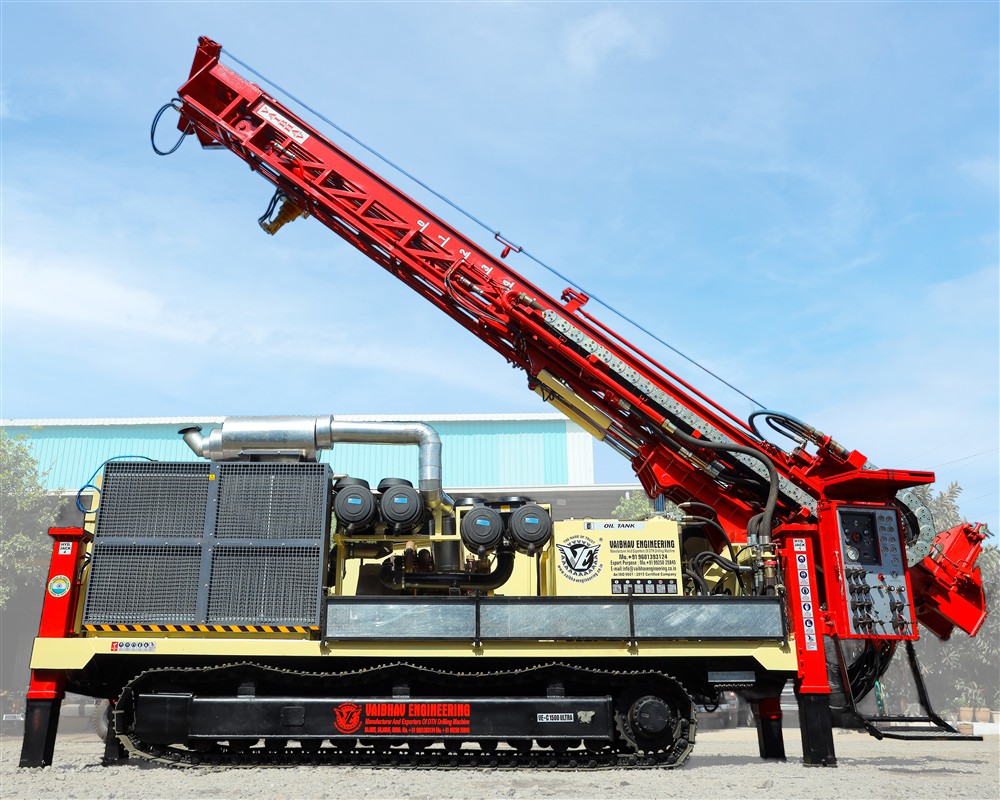

VE C 1500 Ultra

Crawler-based drilling rig with deep drilling capacity and auto rod changer. Built for mobility, stability, and performance in rough off-road conditions.

The VE C 1500 Ultra is a crawler-mounted heavy-duty drill ideal for remote and uneven terrain. Designed for 6 to 12-inch hole diameters and up to 500 meters depth, it offers robust performance with the flexibility of movement thanks to its crawler base.

This machine features advanced hydraulics and a strong rotary head for deep and precise drilling. It’s widely used in water well drilling and exploration projects where terrain and depth demand a rugged, self-propelled solution.

Get a quote  Watch

Hole Diameter 6 to 14 Inches
DTH Drilling Depth 500 Mtr.
Deck Engine 585 HP Cummins KTA-1150-C (Stage V)
Compressor AtlasCopco 1200 CFM
Hyd, System Pressure Danfoss 250 Bar Pressure
Rod Lifter Semi Auto
Work Method Water well Drilling Rig, DTH Cum Roatry
Drilling Tower Box Type Structure
Max Capacity - 35 Ton
Rod Handling Capacity 6 Mtr
Roatryhead Roatryhead Powered by Two Orbital Hydraulic Motor
Max. Speed 0-120 RPM
Feed Cylinder 200 MM Hydraulic Cylinder with wire rope combination
Leveling Jack 140 mm Four Hydraulic Jack Open Type
Drilling Tower Length Customer Choice
Pull up Force 21000 kgf
Pull Down Force 12000 Kgf
Machine Length Customer Choice
Machine Width Customer Choice
