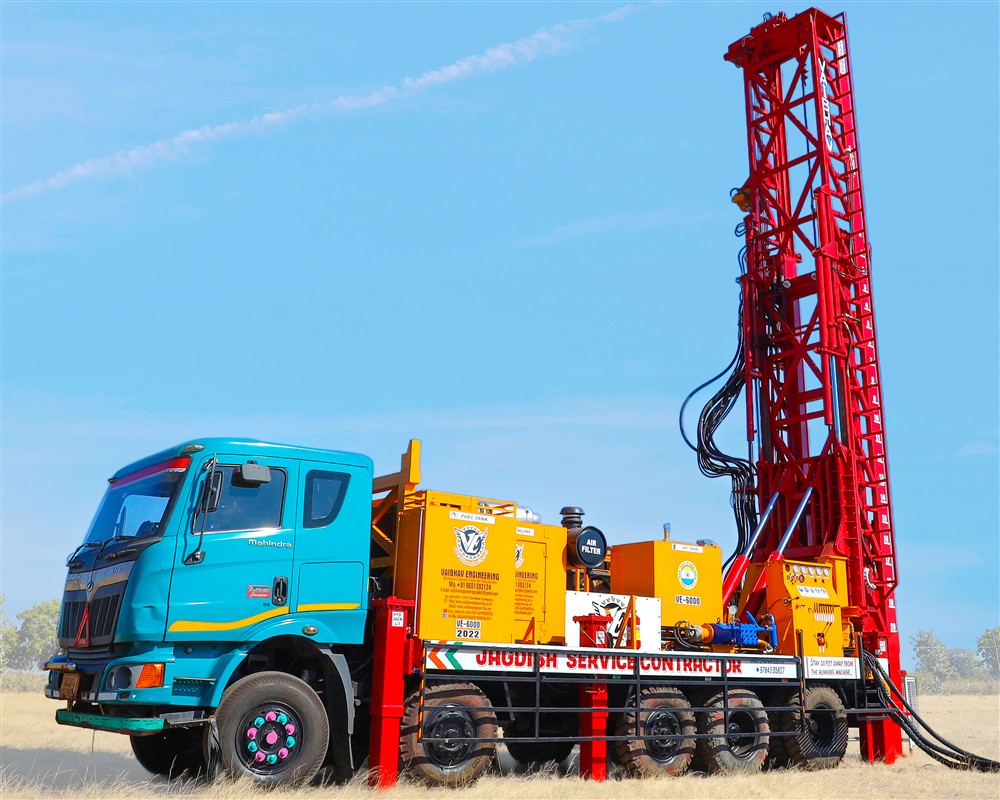

VE 6000

Heavy-duty rig designed for deep borewell and mining operations with superior hydraulic power. Perfect for contractors needing consistent performance and extended drilling depth.

The VE 6000 is a robust drilling machine designed to meet the needs of mid to deep-range drilling jobs. It can drill holes ranging from 6 to 22 inches in diameter and reach depths of up to 2500 meters. This makes it suitable for various tasks such as water well drilling, DTH operations, and even some light mining activities.

Equipped with a strong engine and an efficient hydraulic system, the VE 6000 delivers steady performance across diverse ground conditions. Its user-friendly design allows operators to work more comfortably and efficiently, while its durable frame ensures longevity even in demanding field environments. Ideal for contractors seeking a reliable and high-output drill.

Get a quote  Watch

Hole Diameter 6 to 30 Inches
DTH Drilling Depth 2500 Mtr. with 7 inch Drill Bit
Deck Engine 452 HP Cummins
Truck
Hyd, System Pressure Maximum Working Pressure 4500 Psi
Work Method Water well Drilling Rig, DTH Cum Roatry
Drilling Tower Box Type Structure
Max Capacity - 80 Ton
Rod Handling Capacity 1800 Mtr (15 Ft.)
Roatryhead 1800 mm 2 nos hydraulic cylinder over ropes 2:1 ratio
Rotational torque 11534nm
Feed Cylinder 180 MM 2 no Hydraulic Cylinder with hardchrome
Leveling Jack 140 mm 6 no. Box Type
Drilling Tower Length 11850 MM
Pull up Force 45 Ton to 80 Ton
Pull Down Force 33000 Kgf
Machine Length Customer Choice
Machine Width Customer Choice
