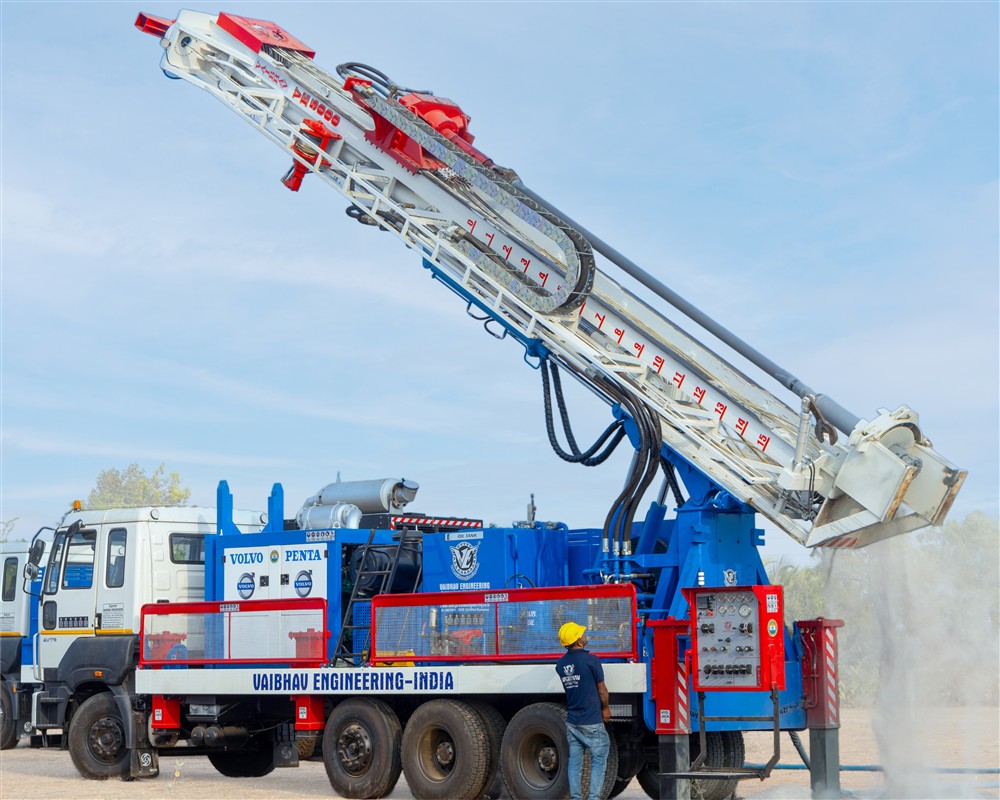

VE 5000 SKID

Skid-mounted version of VE 5000 for compact sites and overseas transport. Provides the same drilling depth and performance in a lighter, portable frame.

 The VE 5000 SKID is a skid-mounted version of the popular VE 5000 model, built for stationary heavy-duty drilling projects. It offers the same powerful performance, with the ability to drill 6 to 18-inch diameter holes to depths of up to 2000 meters. This version is perfect for long-term projects at fixed sites like drilling yards or permanent water well operations.

Mounted on a stable base rather than wheels or tracks, the VE 5000 SKID is designed for minimal movement and maximum performance. Its robust structure supports steady drilling, while the powerful hydraulic and engine systems maintain consistent operation. With low maintenance needs and high drilling efficiency, it’s an excellent choice for reliable, high-capacity drilling at a single location.

Get a quote

Hole Diameter 6 to 24 Inches
DTH Drilling Depth 1000 Mtr. with 7" Drill Bit
Deck Engine 452 HP Volvo Penta
Truck Customer Choice
Hyd, System Pressure Maximum Working Pressure 4500 psi
Work Method Water well Drilling Rig, DTH Cum Roatry
Drilling Tower Box Type Structure
Max Capacity - 50 Ton (33070 lbs)
Rod Handling Capacity 4.572 Mtr (15ft)
Feed Cylinder 160mm 2 No. Cylinder with Harchrome
Leveling Jack 140 mm 6 No. Box Type
Drilling Tower Length 10700mm
Pull up Force 50000 kgf
Pull Down Force 30000 Kgf
Machine Length Customer Choice
Machine Width Customer Choice
