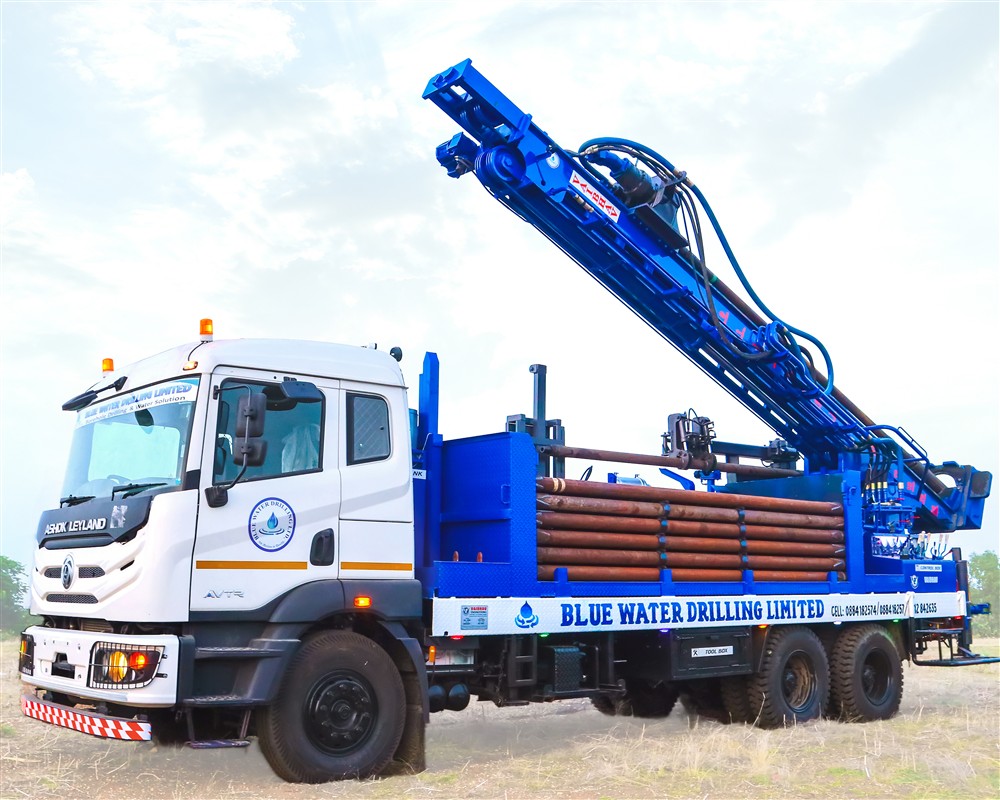

VE 3000 Classic Model

Trusted classic rig suitable for general water well drilling and rotary applications. Combines durable structure with dependable drilling capacity for everyday use.

The VE 3000 Classic Model is designed for dependable mid-range drilling tasks. With a drilling diameter range of 6 to 12 inches and a depth capacity of around 1000 meters, it’s ideal for agricultural, water resource, and foundation work. This model balances performance with portability for general-purpose use.

Its simple yet tough design includes a reliable engine and hydraulic system, providing steady power for long workdays. The VE 3000 Classic is a favorite among drillers who need a workhorse rig that’s easy to service, economical to operate, and reliable over the long term. It’s a trusted machine that delivers solid results in everyday drilling conditions.

Get a quote  Watch

Hole Diameter 6 to 14 Inches
DTH Drilling Depth 800 Mtr.
Deck Engine 218 HP Ashok Leyland
Truck Ashok Leyland 2825 BS6 4 x 4 Company Cab, 9-Speed Gear Box
Hyd, System Pressure Maximum Working Pressure 4000 Psi
Rod Lifter Updated Technology Hydraulic Rod Lifter
Work Method Water well Drilling Rig, DTH Cum Roatry
Drilling Tower Box Type Structure
Max Capacity - 30 Ton
Rod Handling Capacity 4.572 Mtr (15 Ft.) & (20 Ft.)
Roatryhead Roatryhead Powered by Two Orbital Hydraulic Motor
Max Speed 40-120 RPM
Feed Cylinder 200 MM Hydraulic Cylinder with wire rope Combination
Leveling Jack 140 mm Four Hyrdraulic Jack Open Type
Drilling Tower Length 9350 MM
Pull up Force 30000 Kgf
Pull Down Force 19000 Kgf
Machine Length Customer Choice
Machine Width Customer Choice
