Truck 1 with Compressor and Fuel Tank
Truck 2 with Hydraulic System + Compressor + Auto Rod Changer + Hydraulic Drive Mud Pump

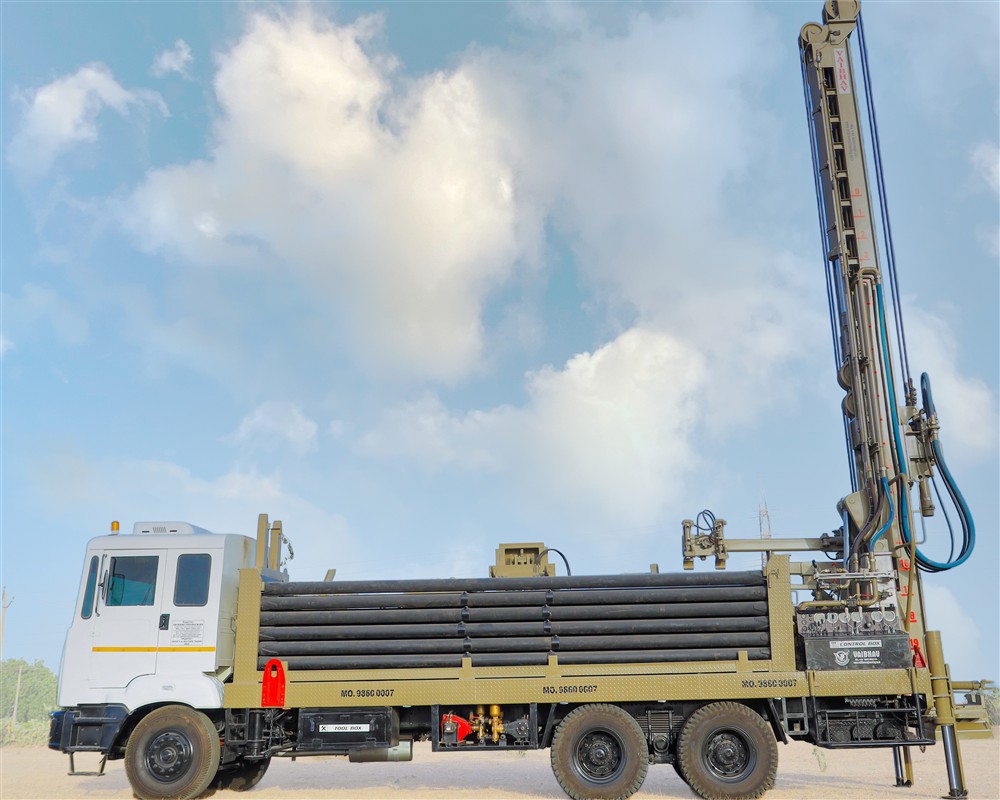

The VE 2000A Premium Model truck has a Hole Diameter of 6 to 14 Inches and a DTH Drilling Depth of 3000 Ft. The Deck Engine is 218 HP Ashok Leyland. The Hydraulic System Pressure has a maximum Working Pressure of 4000 Psi and comes with an updated technology Hydraulic Rod Lifter. It can be used for Water well Drilling Rig or DTH Cum Roatry. The maximum capacity of the Drilling Tower Box Type Structure is 30 Tons and a Rod Handling Capacity 4.572 Mtr (15 Ft.) & (20 Ft.). The length and width of the machine are 7470 MM and 2565 MM respectively.
| Hole Diameter |
6 to 14 Inches |
| DTH Drilling Depth |
600 Ft. |
| Deck Engine |
218 HP Ashok Leyland |
| Truck |
Ashok Leyland 2825 BS6 4 x 4 Company Cab, 9-Speed Gear Box |
| Hyd, System Pressure |
Maximum Working Pressure 3000 Psi |
| Rod Lifter |
Updated Technology Hydraulic Rod Lifter |
| Work Method |
Water well Drilling Rig, DTH Cum Roatry |
| Drilling Tower |
Box Type Structure |
| Max Capacity - 22 Ton |
| Rod Handling Capacity 6 Mtr (15 Ft.) & (20 Ft.) |
