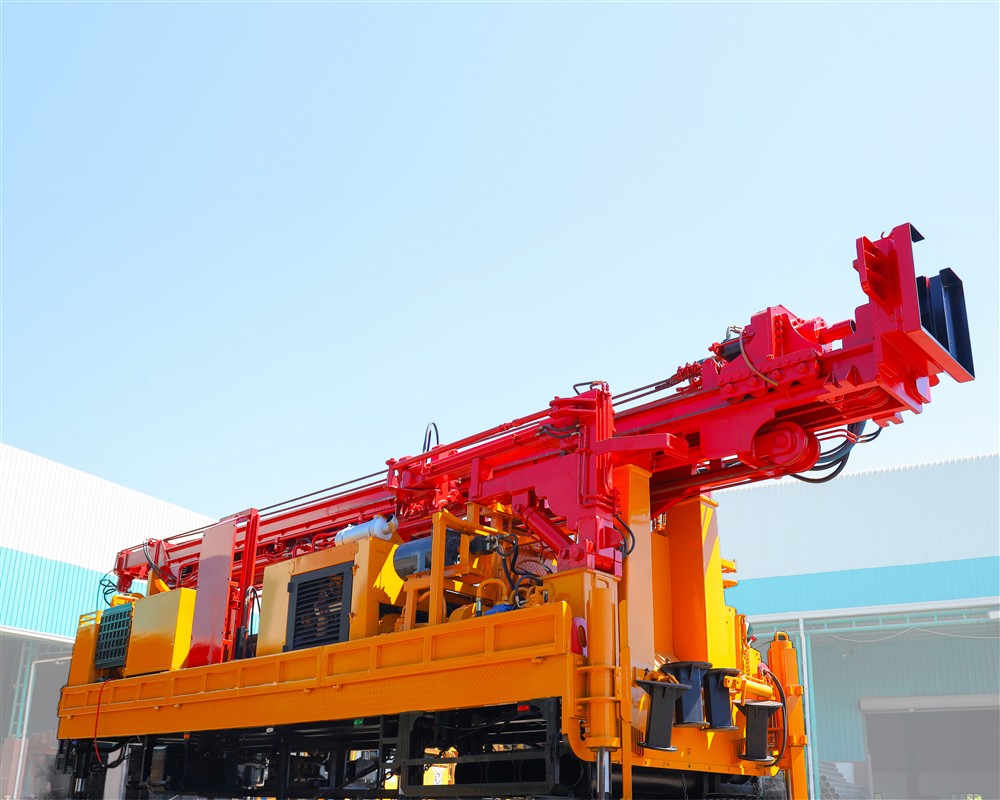

VE 2000 SKID

Export-oriented skid-mounted rig offering premium features in a portable package. Ideal for remote projects requiring mobility, deep reach, and reliable performance.

Premium Export Model Skid Mounted

Platform With Hydraulic System & Duck Engine

Get a quote

Hole Diameter 6 to 14 Inches
DTH Drilling Depth 600 Mtr.
Deck Engine 218 HP Ashok Leyland
Truck Platform with Compress
Hyd, System Pressure Maximum Working Pressure 3000 Psi
Rod Lifter Fully Automatic Updated Technology Hydraulic Rod Lifter
Work Method Water well Drilling Rig, DTH Cum Roatry
Drilling Tower Box Type Structure
Max Capacity - 22 Ton
Rod Handing Capacity 6 Mtr. (15 Ft.) & (20 Ft.)
Roatryhead Roatryhead Powered by Two Orbital Hydraulic Motor
Max. Speed 0-120 RPM
Feed Cylinder 200 MM Hydraulic Cylinder with wire rope combination
Leveling Jack 140 mm Four Hydraulic Jack Open Type
Drilling Tower Length Customer Choice
Pull up Force 22000 kg/cm2
Pull Down Force 12000 Kgf
Machine Length Customer Choice
Machine Width Customer Choice
