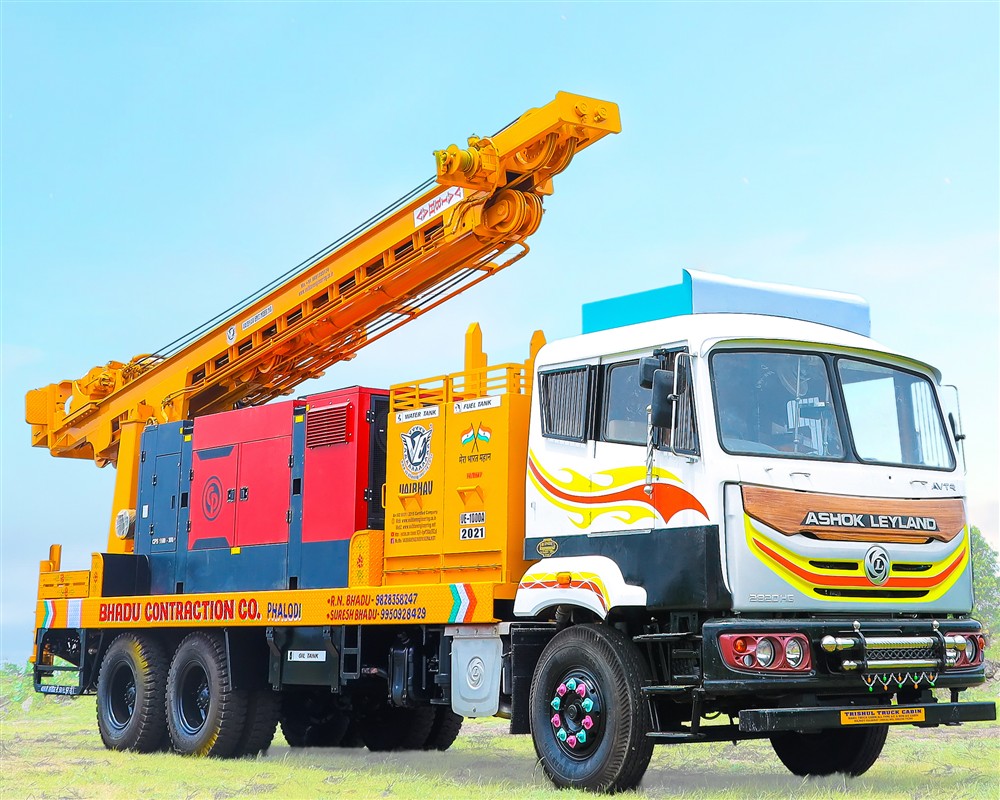

VE 1000A - Classic Model

Simple yet powerful drilling rig for reliable operations up to 400 meters. Engineered with classic controls and strong build for long-term usage.

The VE 1000A Classic Model is a compact, cost-effective drill rig perfect for light- to medium-duty drilling projects. It handles 4 to 8-inch holes and can drill up to 800 meters deep. Its user-friendly design and straightforward functionality make it ideal for newcomers and seasoned professionals alike.

This model delivers excellent results for agricultural borewells, small irrigation setups, and soil testing. With a strong hydraulic system and easy maintenance, the VE 1000A is a great fit for those seeking value, simplicity, and durability in a smaller package.

Get a quote  Watch

Hole Diameter 6 to 10 Inches
DTH Drilling Depth 400 Mtr.
Deck Engine 200 HP Ashok Leyland
Truck Ashok Leyland 2820 or Ashok Leyland 2825
Hyd, System Pressure Maximum Working Pressure 2000 - 4000 Psi
Rod Lifter Manual
Work Method Water well Drilling Rig, DTH Cum Roatry
Drilling Tower Box Type Structure
Max Capacity - 15 Ton (33070 lbs)
Rod Handling Capacity 4.572 Mtr (15 Ft.)
Roatryhead Roatryhead Powered by Two Orbital Hydraulic Motor
Max Speed 0-120 RPM
Feed Cylinder 200 MM Hydraulic Cylinder with wire rope Combination
Leveling Jack 140 mm Four Hyrdraulic Jack Open Type
Drilling Tower Length 9350 MM
Pull up Force 18000 Kgf
Pull Down Force 12000 Kgf
Machine Length Customer Choice
Machine Width Customer Choice
